This 2.4" 320x240 TFT touch screen uses the XPT2046 controller, and can connect via SPI; using pins, built-in headers, or a 10p cable (available separately).
Features
-

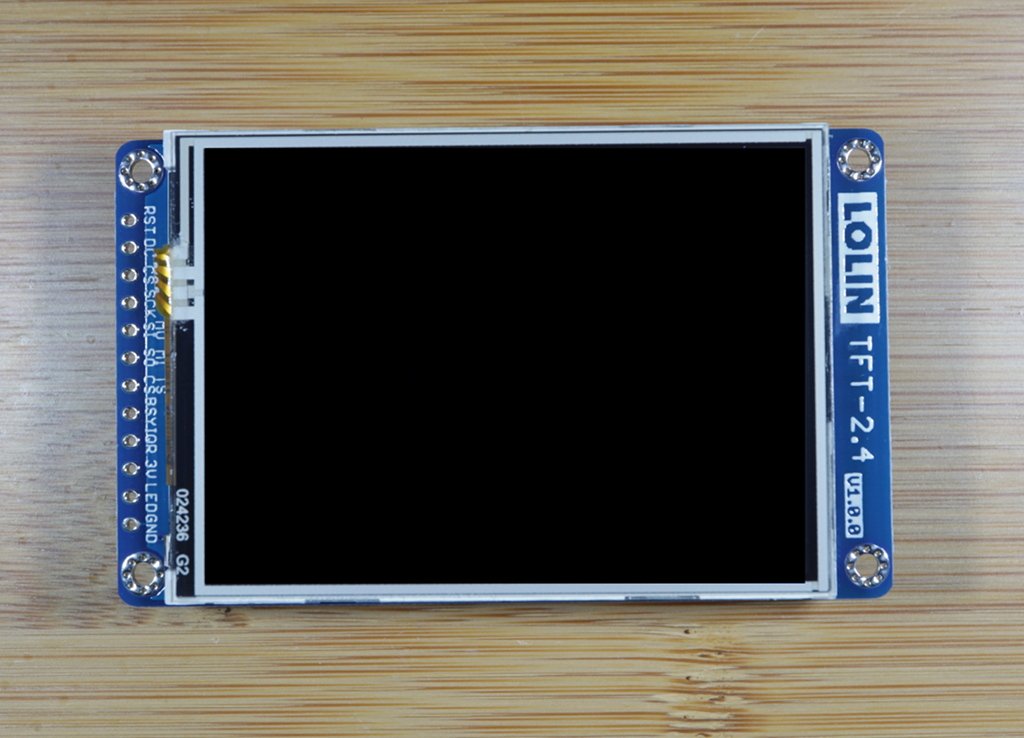

2.4” diagonal LCD TFT display
-
320×240 pixels
-
TFT Driver IC: ILI9341
-
Touch Screen controller IC: XPT2046
-
Compatible with D1 mini, D1 mini Pro, D32 Pro.
-

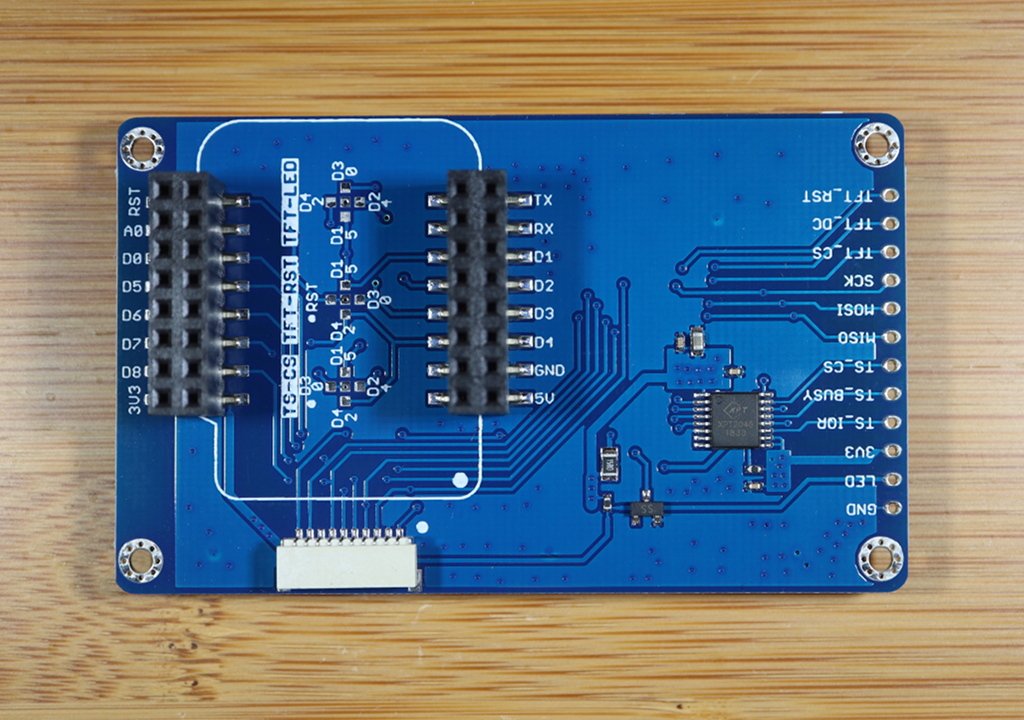

3 kinds of connection
Pins
| D1 mini | Shield |
|---|---|
| NC*(D1/D2/D3/D4) | TFT_LED |
| RST*(D1/D3/D4)) | TFT_RST |
| D8 | TFT_DC |
| D7 | MOSI |
| D6 | MISO |
| D5 | SCK |
| D0 | TFT_CS |
| D3*(D1/D2/D4) | TS_CS |
| *default |
